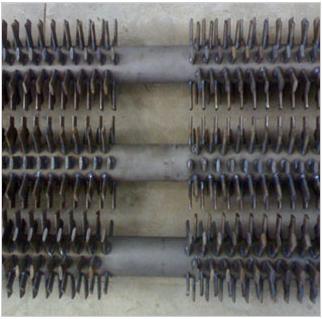

Colored Oval Studs Tubes

Colored Oval Studs Tubes
Colored Oval Studs Tubes
Product Code : WEST
Brand Name : Studded Tubes (Oval)
Product Description

Available with us is a broad gamut of Colored Oval Studs Tubes. These oval tubes are demanded extensively in various engineering industries and are appreciated for their sturdiness, resistance against corrosion and durability. In order to fulfill the diverse requirements of the clients, we manufacture these Colored Oval Studs Tubes in variegated dimensions and specifications. Besides, in order to ensure their excellent working efficiency, we examine these tubes on certain well-defined parameters. Supported by 3 machines (lines) with a capacity to manufacture 16,00,000 oval studs per annum, we are able to fulfill bulk demands of the customers.

Features:

  • Application specific structure ensures easy installation
  • Delivers exceptional durability support in fitting
  • High strength with optimum tolerance capacity
  • Compact built provides easy installation
  • Edges are finished with perfection
  • Resistance to varied temperature with enhanced durability
  • Provided in smooth surface finish with no roughness
  • Widely used in heat exchangers due to their dimensionally accuracy and optimum strength

Technical Details:

Pipe Details

  • Pipe Diameter:     Min 1” Od To Max 4” Nb Pipe
  • Materials:            Carbon Carbon Steel, Stainless Steel(304,316,310,410,321,347 etc), Alloy Steels (P5,P9,P11, P22), Inconel, High Chrome High Nickle & Incolloy  Etc. (any Ferrous Material)

Stud Details

  • Stud Height:         Min 0.5” (12.7 Mm) To Max – 2.5” (63.5MM)
  • Stud Diameter:     Elliptical / Oval Size Of Which Can Vary From Customer To Customer (12.7MM Is Common)
  • Stud Spacing:       Min 12.7 Mm
  • Stud Materials:     Carbon Steel, Stainless Steel(304,316,310,410,321,347 etc), Alloy Steels (P5,P9,P11, P22), Inconel, High Chrome High Nickle & Incolloy  Etc. (any Ferrous Material)
